ECU100W (1 unit)
The ECU100W Environmental Contol Unit (ECU) is a Wi-Fi based data-logger and controller which includes eight closed loop circuits composed of one single-ended (0 to 2.5VDC) analog inputs and a corresponding normally-open relay.
These units are ideal for closed-loop applications where a device nearby must be turned on or off based on a user-configured analog input level threshold. Common industrial IoT applications include industrial-grade thermostats, water flow and tank-level monitoring, and factory equipment automation.
EDG’s edgLink mobile app uses Bluetooth to authenticate the device to a user-specified Wi-Fi network. Once authenticated, the device is ready to use.
Each ECU100W unit includes:
8 analog-to-digital converters:
0 to +2.5 VDC single-ended
8 normally open relays:
Nominal Switching Capacity (resistive load): 5 A at 250 VAC, 5 A at 30 VDC
Max. Switching Power (resistive load): 1,250 VA, 150 W
Max. Switching Voltage: 250 VAC, 110 VDC, 0.4 A
Max. Switching Current: 5 A (AC, DC)

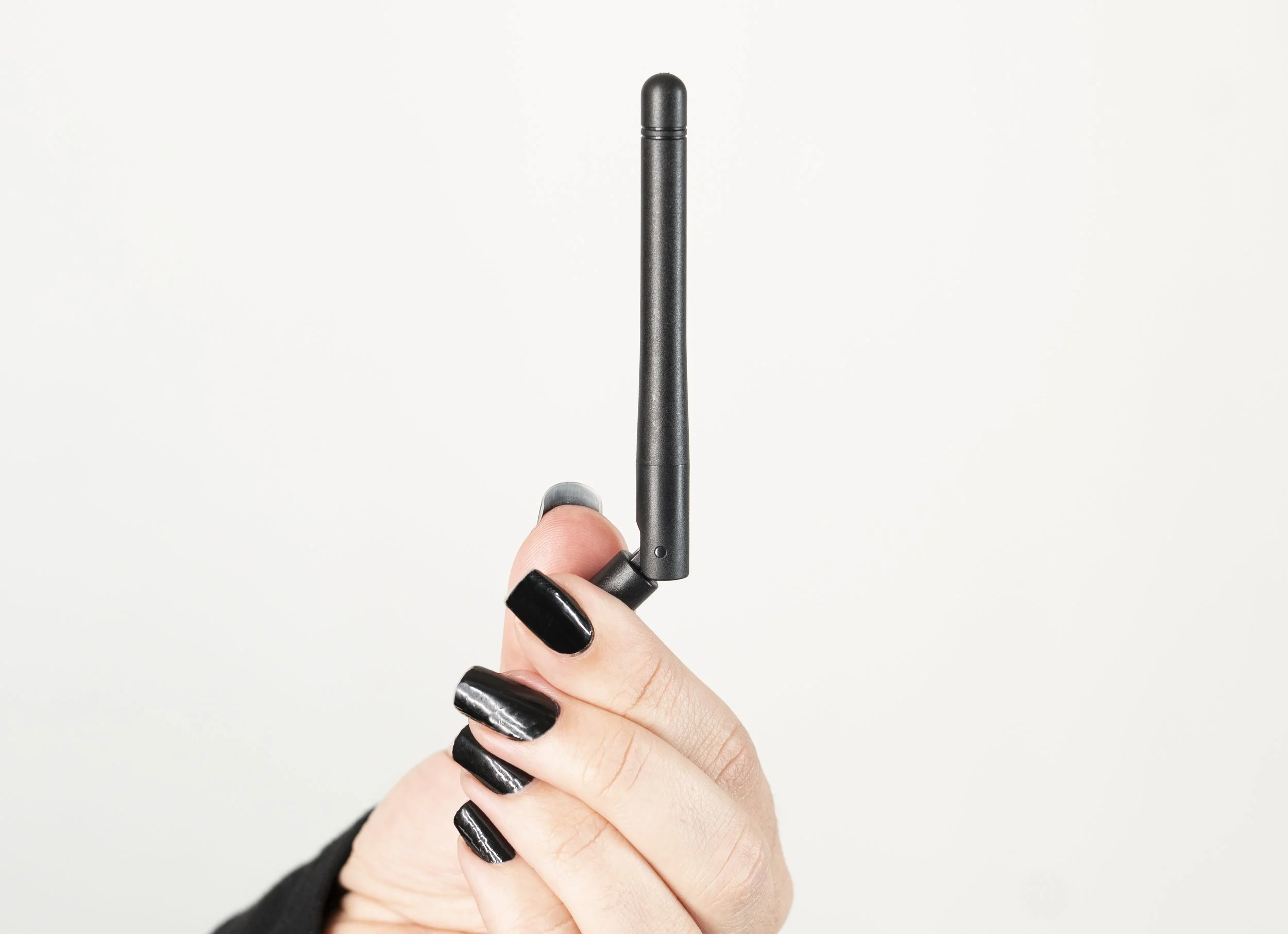

Wi-Fi antenna
Data transmissions to the EDG Client Portal occur over 802.11a/b/g/n/ac dual-band (2.4GHz and 5GHz)
AC/DC wall-mount power adapter (+12VDC output)
1 year subscription to EDG Client Portal
Assign meaningful names to individual devices
Organize devices into groups for selective monitoring
Historical access to data
Export data to CSV to quickly monitor trends, make predictions, and take action
Lifetime security updates without user intervention
Applications
Industrial-grade thermostats
Water flow and tank-level monitoring
Factory automation
Enclosure dimensions
150mm x 150mm x 45mm (L x W x H)
